Mount Face Expansion Cam Unit
VALCAM-EL

New Slider Expansion Type Added to VALCAM 100, 140, 200
  • Machining possible even at positions away from the panel edge.
  • High flexibility in mounting tools.
  • No need for block design and arrangement.
  • Same mounting dimensions as VALCAM of the same size.

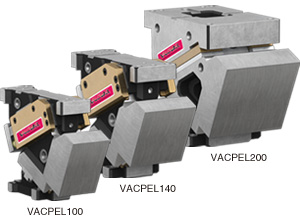

VALCAM-EL VALCAM-EL 100 VALCAM-EL 140 VALCAM-EL 200

Panel Avoidance Cam,
LONG BODY CAM
SACMB･SACLB･SACLS･SACLU

Variety of choices
  • Added size variations that allow to choose the cam length and driver height.
  • Compact design for back angle piercing.
  • Minimal rear space removal and ease of
    cam slider disassembly.
  • Spring option: Gas or Coil Spring.

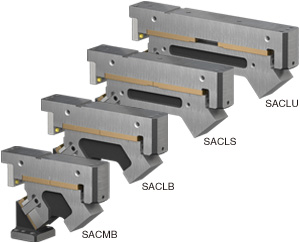

Panel Avoidance Cam, LONG BODY CAM SACMB80 SACLB80 SACLS80 SACLU80

Panel Avoidance Cam,
PULL CAM
SAPLC･SAPLS･SAPLU

Variety of choices
  • Added size variations that allow to choose the cam length and driver height.
  • Compact design for back angle piercing.
  • Minimal rear space removal and ease of
    cam slider disassembly.
  • Spring option: Gas or Coil Spring.

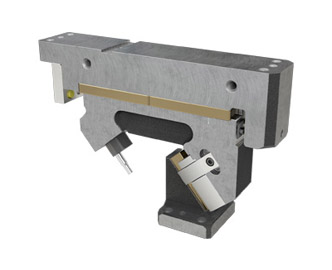

Panel Avoidance Cam, PULL CAM SAPLC80 SAPLS80 SAPLU80

VALCAM Black

Mount face widths to 100 and 140 mm Added to Black Grade
  • Our proprietary material SO#50SP8 with excellent wear resistance is used for sliding parts.
  • Increased processing power.
    (1.5 times that of Pink grade.)
  • Panel processing accuracy unchanged even after 1 million strokes.
VALCAM Black VALCAM 100 Black VALCAM 140 Black
Mount Face Extension Option Added to Black Grade
  • The most powerful Black Grade now includes Mount Face Extension Option SC/WC.
  • Mount Face Widths 46, 58, and 72 Short and Long Travel.
Mount Face Extension Option Details

Coil Support Economy Type  TAJS

Compact and durable TAJS is now available
  • More compact than TAJP.
  • Contributes to downsizing die size.
  • Torsion spring absorbs shock and resists breakage.
TAJS

Ram Lifter  SORMLL

Compact lifter that follows press stroke
  • Easy installation.
    Mechanical stroke no air piping required.
  • Reliable stroke travel by use of Guide Post and Bushing.
  • Flat surface for mounting panel shape block.
SORML

Die Mounted Cam Unit  CMSDG

Higher working force type of CMSD
  • Bronze and solid lubricant sliding,Gas Spring
  • Exchangeable sliding plate and easy maintenance
  • Interchangeable with CMSD
Interchangeability
CMSDG

Panel Avoidance Cam,
LONG NOSE CAM
SULNC

Long Nose Cam for high speed production
  • Greatly improved rigidity absorbs the impact of
    the time a press machine rises
  • Gas Spring
  • Exchangeable sliding plate and easy maintenance
  • Interchangeable with SULNC
Interchangeability
Panel Avoidance Cam, LONG NOSE CAM SULNG

Panel Avoidance Cam,
LONG LEG CAM
SACTFR - angle 50° ~ 80°-

The lowered cam driver position provides no interference with the panel.
  • Option SH, which is to change shut height, provides optimal designing of the die
  • Space saving

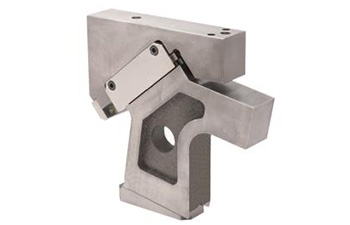

Panel Avoidance Cam, LONG LEG CAM SACTFR

Panel Avoidance Cam,
LONG LEG CAM
TSHC - angle 10° ~ 30°-

Easy access to higher location of hole piercing even if hole piercing is much higher than the lowest position of the panel.
  • The lowered cam driver position contributes to no interference with the panel.
  • Unique design of this cam contributes to more compact tooling design and contributes to less machining time.
Panel Avoidance Cam, LONG LEG CAM TSHC
