Features of the Pad Mounted Cam Unit

Enables cam installation within the pad, significantly enhancing die layout flexibility.

The Pad Mounted Cam Unit can be installed in locations where conventional cam units have been difficult to apply, such as the inner sections of large panels like back doors and inner panels with limited die space.It also accommodates applications where driver placement is challenging, supporting more efficient and higher-density die designs.

Key Benefits

・Achieves a compact die design by enabling cam installation within the pad

・Suitable for processing areas that were previously difficult to access,
　such as the inner sections of large panels

・Can be installed in inner panel dies where available space is limited

・Allows unit installation even in locations where driver placement is difficult

Please see the link below to download the latest PDF brochure.

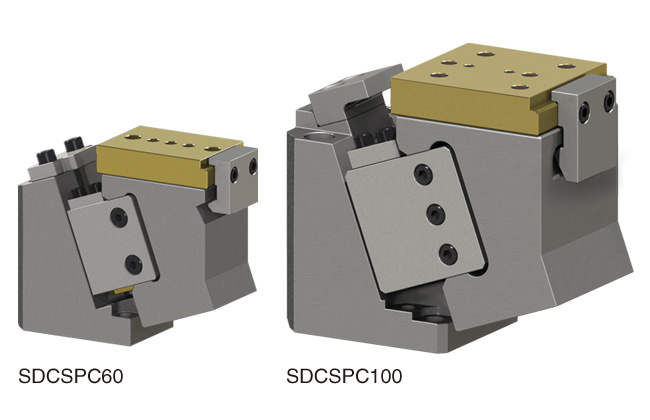

Pad Mounted Cam Unit SDCSPC
